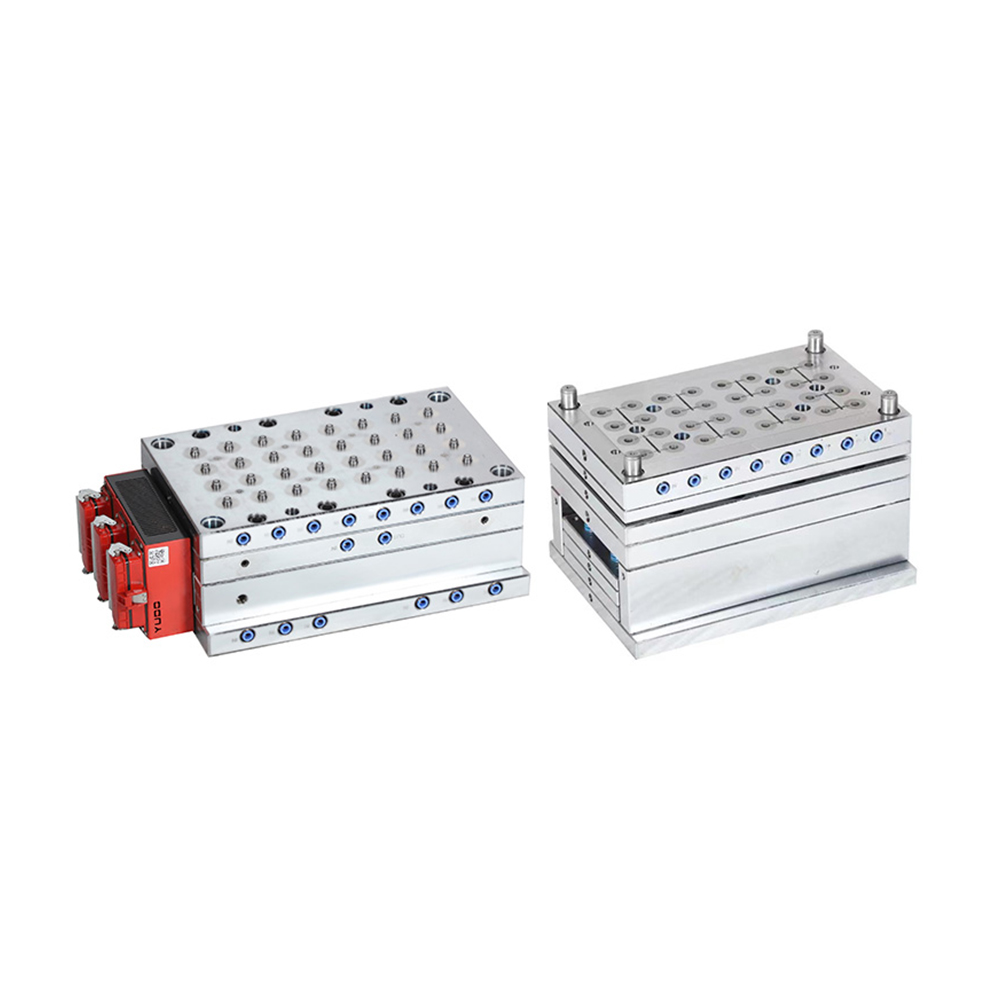

cosmetic pump spray mould

Mould name

Pump spray mould

Neck size

18mm  20mm  ,24mm  ,28mm

Mould cavity

8cavity ,16cavity,24cavity,32cavity,48cavity

Insert material

Cavity : S136,   Hardness :47-50°  ;

Core:H13 ,Hardness 47-50 °;

Core surface need nitriding or QPQ treatment  ，It is according to the mould parts hardness request ,after treatment the surface hardness around 60-90 °

Mould plate material

P20  718  S136  according to client’s request

Runner type

Cold runner / hot runner , according to client’s request

Hot runner system

The temperature difference under controlling within1℃difference it makes sure that the raw material cann’t be burnt inside of hot runner. the wastage will be kept less than 1% .

Hot runner made by our own factory.You also can choose YUDO,SINO,HUSKY or other famous brand hot runner system as your choice.We have cooperation with all the hot runner system supplier.

Mould spare parts

8 cavity : 1 set spare parts  ; 16 cavity :2 sets spare parts;…….

Warranty

1year or 1million shots

Mould package

Wooden box

Mould  delivery time

45-60days

The mainly material and each material hardness

Material                           p20            718H         2738H        H13           S136         NAK80

Hardness                       33-37           33-38         36-40       47-50         47-50        34-40
